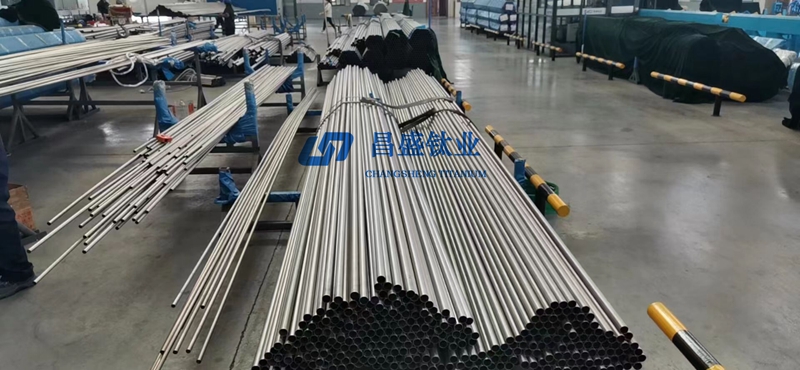

Titanium condenser tubes 3/4”

Application of titanium condenser tubes

Titanium condenser tubes are mainly used as condensing equipment in the petrochemical industry and can be used for cooling, solidification, and recovery of vapor-liquid separation, separation rectification, and distillation in the petrochemical production process. Because titanium has excellent corrosion resistance, high-temperature stability, heat resistance, and thermal conductivity, titanium condenser tubes are frequently used condensation equipment in the petrochemical industry.

The application of titanium condenser tubes also includes procedures such as purification and separation of chemicals, condensation of liquids, recovery, separation, and purification. The feature of a titanium condenser tube is that it can withstand high temperature, high pressure, and acid-base environment, and has good heat exchange performance, which can effectively reduce energy consumption in the production process and improve production efficiency.

Specification of titanium condenser tubes

Materials: Gr2 titanium
Standard: ASTM B338
Size: 19.05(3/4‘’)*0.889*10850mm
Density: 4.51g/cm3
Total weight: 9.3 tons
Inspection: 100% UT /hydrostatic test

Titanium condenser tubes process:

Selection of titanium material: The selection of titanium material has a great influence on the performance of the condenser tube. Generally, Gr2 (pure titanium tube)/Gr7 (titanium-palladium alloy)/Gr12 (titanium-molybdenum-nickel alloy) are used to make condenser tubes.
Material forming: Titanium materials are usually processed into titanium tubes by cold rolling.
Heat treatment: After processing, the titanium tube should be heat treated to ensure its strength and toughness of the titanium tube.
Inspection of the condenser tube: After the condenser tube is manufactured, it is inspected to ensure quality and performance of the condenser tube.
This is the general process of making titanium condenser tubes. The specific process varies according to the production capacity, equipment level, and production environment of the manufacturer.
